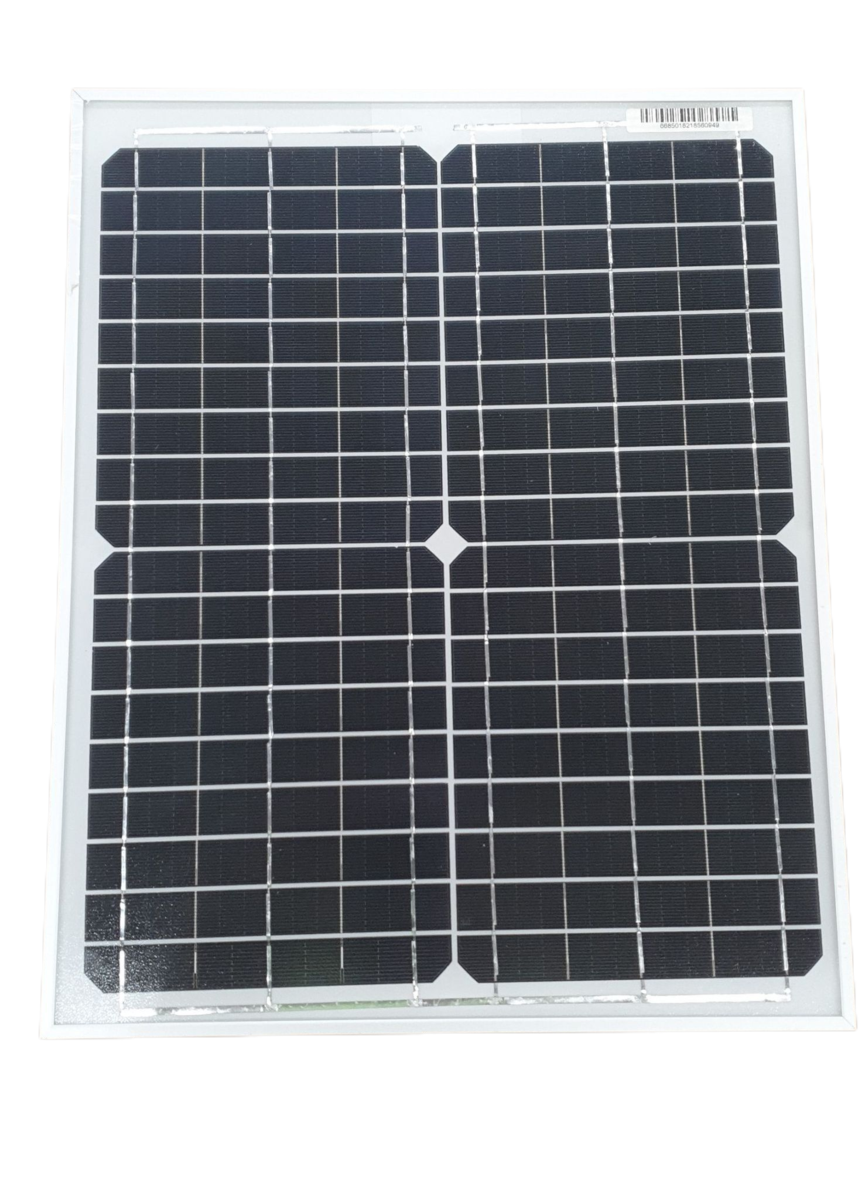

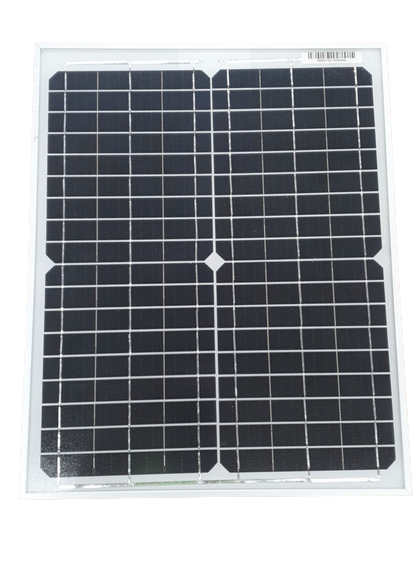

Symmetry Solar PV 20w Module; Mono 12v 5m No Connectors (25mm)
$65.00
The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
Features
High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
High module conversion efficiency, through innovative manufacturing technology.
Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
Specifications
| Weight [kg] | 1.9 |
| Depth [mm] | 25 |
| Quantity Per Pallet | 200 |
| Brand | Symmetry |
| Backsheet Colour | White |
| IP Rating | IP64 |
| Operating Temperature Range [°C] | -40 to +85 |
| Maximum Power (Pmp) [W] | 20 |
| Maximum Series Fuse Rating [A] | 10 |
| Frame Colour | Silver |
| Solar Cell Type | Monocrystalline |
| Maximum Power Voltage (Vmp) [V] | 18.46 |
| Maximum Power Current (Imp) [A] | 1.09 |
| Short Circuit Current (Isc) [A] | 1.15 |
| Open Circuit Voltage (Voc) [V] | 22.61 |
| Pmp Temp Coefficient [%/°C] | -0.4 |
| Voc Temp Coefficient [%/°C] | -0.290 |
| Isc Temp Coefficient [%/°C] | 0.048 |
| NOCT [°C] | 45 |
| Junction Box | IP64 |
| Module Cables | 5m x 0.5mm2 |
| Maximum System Voltage [V] | 1000 |
| Number of Cells | 36 |

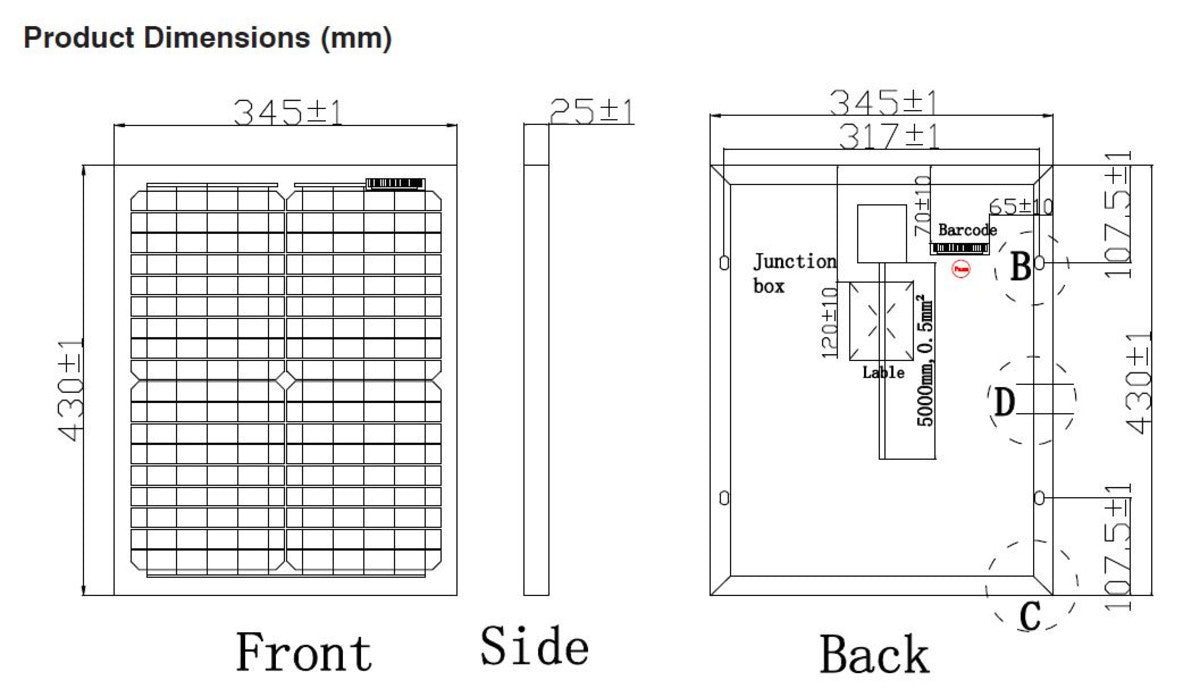

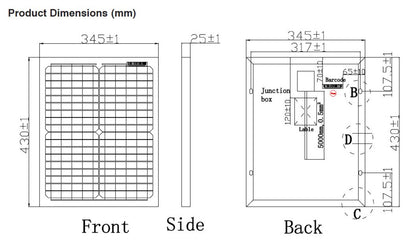

| Width [mm] | 345 |
| Length [mm] | 430 |
| Packaging | Cardboard Carton |
| Family | Symmetry |
