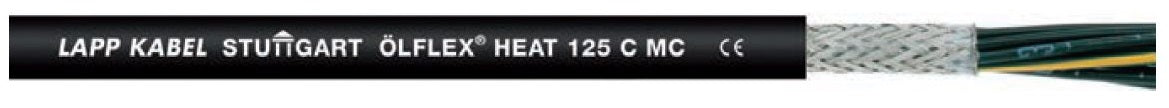

LAPP KABEL ÖLFLEX® HEAT 125 C MC Hi Temp Shielded Multicore Cable, Halogen Free, Flame-retardant, Low Smoke

LAPP KABEL

Call or Email for Pricing


LAPP KABEL LOGO

Electron beam cross-linked cables for more demanding application requirements

  • For safety in areas with high density of people
  • Reduction of flame propagation, density and toxicity of smoke gases in event of fire
  • Minimises damage to buildings and equipment caused by the formation of toxic acid fumes in fires
  • Certified for maritime applications
  • Copper braiding screens the cable against electromagnetic interference
Application
  • For the wiring and connection of lighting, heating appliances, control cabinets, and distributors in mechanical and plant engineering
  • For use in traffic regulation systems and outdoors
  • Coil winding, electromagnets, pumps, electrical systems
  • Heat Treatment plants, pressure die casting, heating and cooling technology
  • For outdoor applications
    Product Features

    Fire behaviour:

    1. Halogen-free (IEC 60754-1)
    2. No corrosive gases (IEC 60754-2)
    3. Low smoke density (IEC 61034-2)
    4. Flame-retardant (IEC 60332-1-2, NF C 32-070 (C1) and NF-F 16-101 (Class C))
    5. Low toxicity (EN 50305)
    • No flame-propagation according to IEC 60332-3-22, IEC 60332-3-24 and IEC 60332-3-25 (Flame spread on vertical cable bundle)
    • Oil-resistant acc. IEC 60227-1 (ST9) and EN 50264-1 (EM104)
    • UV-resistant according to ISO 4892-2
    • Ozone-resistant according to EN 50396
    Approvals
    • GL - Germanischer Lloyd approved
    • Based on EN 50525-3-21 and EN 50525-3-41

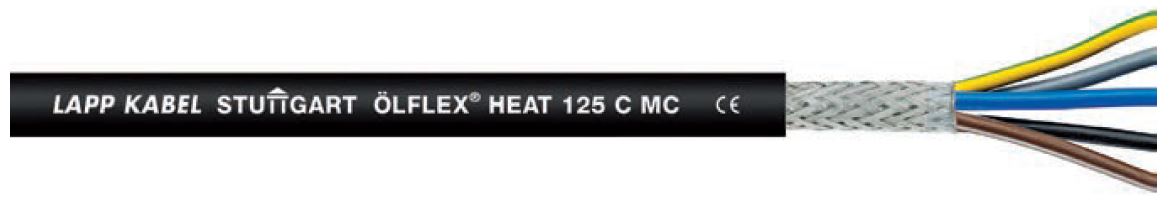

    Construction
    • Fine-wire, tinned-copper conductor
    • Electron beam cross-linked polyolefin copolymer insulation
    • Cores twisted in layers
    • Tinned-copper braiding
    • Outer sheath: electron beam cross-linked polyolefin copolymer, black



    Click Here for PDF Data Sheet
