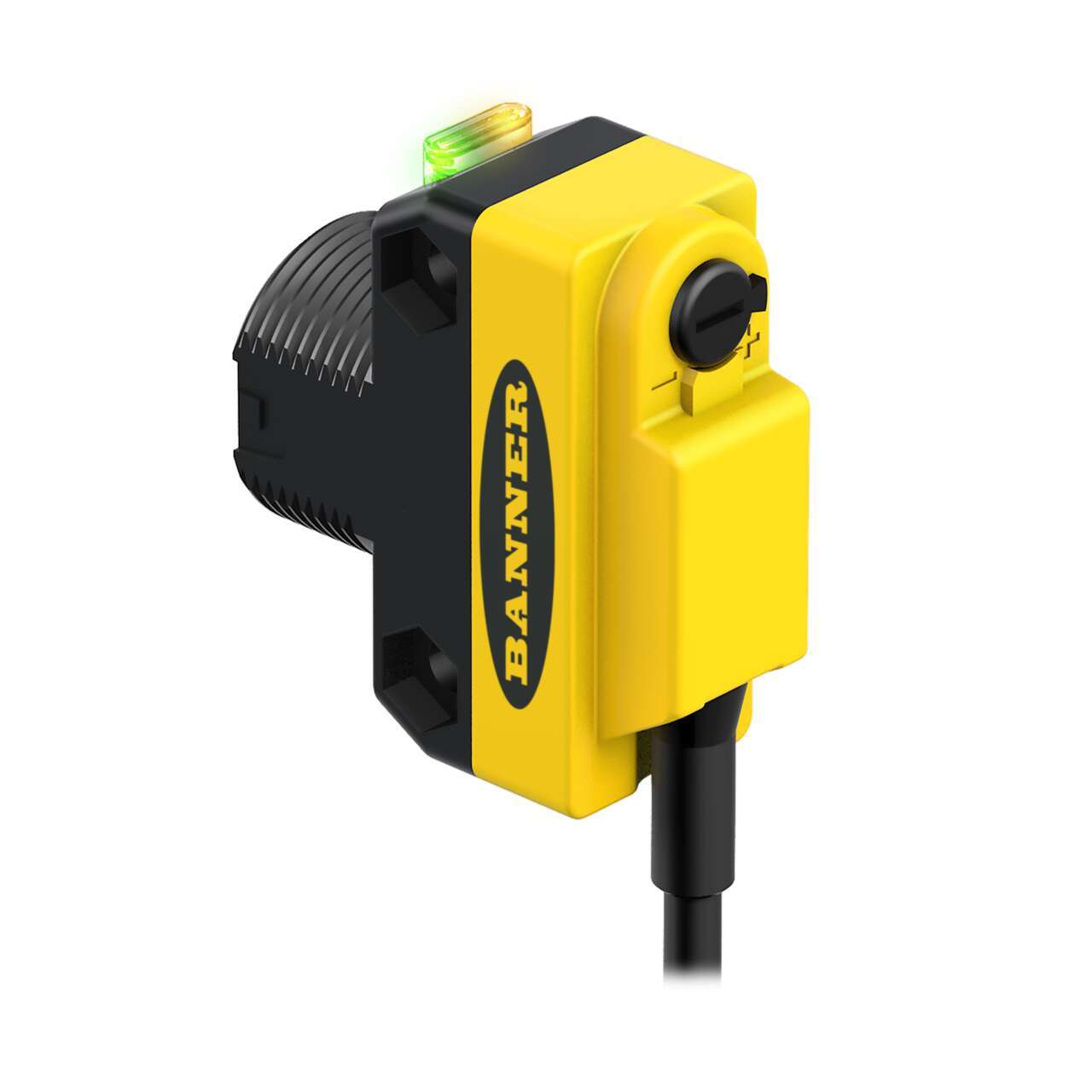

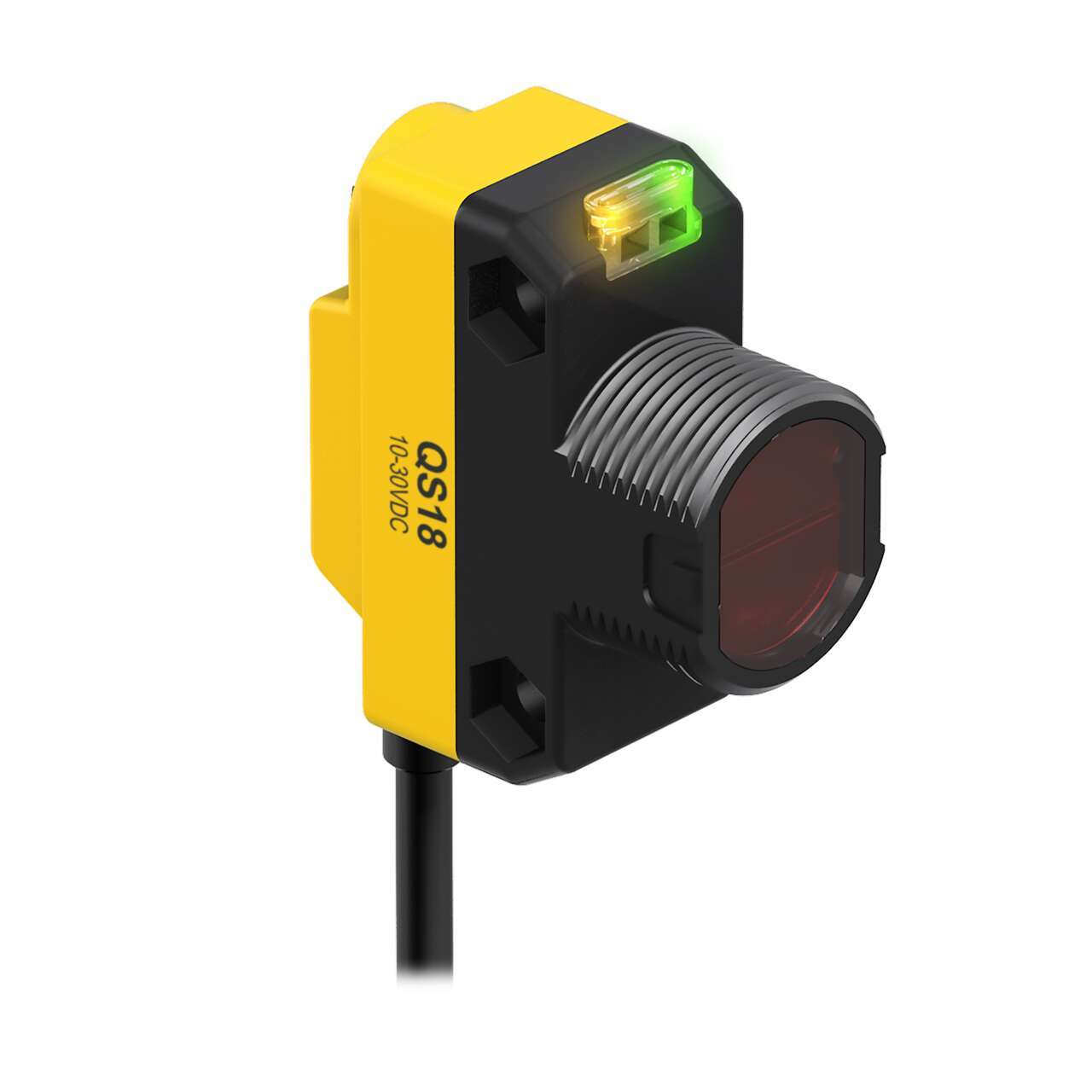

Banner Engineering QS18 Series All Purpose Photoelectric Sensor - QS18VP6LV
$130.00
Banner Engineering QS18 Series All Purpose Photoelectric Sensor - QS18VP6LV
IP Rating IP67
Cable Length (m) 2
Sensing Beam Visible Red LED
NEMA / UL Type Rating NEMA 4X
Power DC
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input Output Discrete
Max Sensing Distance (mm) 6500
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.6
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100
Repeatability (µs) 150
Number of Pins 4
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Feature: Audible No
