E2S GNExCP6A/B Manual Call Points
Call or Email for Pricing

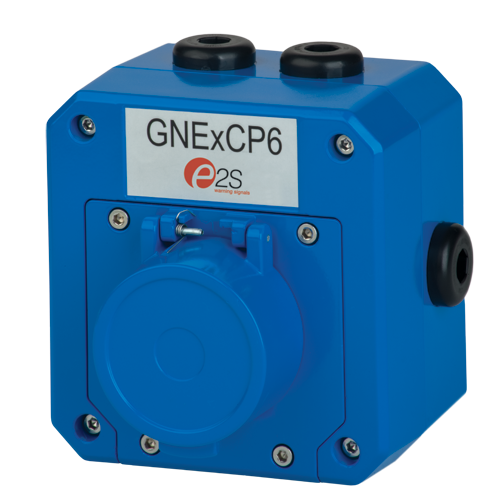

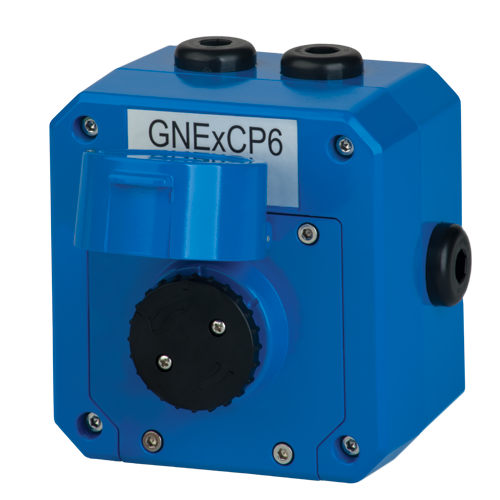

The GNExCP6A manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.
- Break glass or push button manual call point
- Ex e d IIC zone 1, 2, 21 and 22 (IECEx)
- Alternative housing colours
- Single or double pole switch
- Optional stainless steel lift flap
- Optional duty label
- Optional LED indicator
- Optional series and EOL resistors (CP6B only)
- IP66
Specifications
Input Voltage/current:
CP6A- 250VAC max, 5.0A max, 50VDC max, 1.0A max
CP6B - 48VDC, 0.75A max, 24VDC, 1.0A max
Terminals:
CP6A - 6 x 4mm2
CP6B - 6 x 4mm2 or 8 x 2.5mm2 DIN rail
Protection: IP66
Temp rating (°C): T6 -40 to +55°C (CP6B +50°C)
Cable entry: 3 x M20 clearance holes top, bottom and side
Construction: GRP
Weight: 1.20kg
Approval:
CP6A- II 2G Ex e d IIC T6
II 2D Ex t IIIC T60°C
CP6B- II 2G Ex e d mb IIC T4 (max ambient temperature +50°C)
II 2D Ex t IIIC T80°C
Certificate: IECEx (SIR 09.0121X)
Â
For more Specifications, please click here
Because these are custom made please give us a call on 03 9314 7877 for a quote.
